Since day one KOLT has been a pioneer for highly efficient and reliable military power supplies. Designing and manufacturing exceptional power supplies for air, land and naval platforms over the years established well-deserved expertise which we feel proud of.
Compliant with military standards, KOLT’s field-proven power supplies being used every day in most demanding environments on our planet. Set to perfect EMI, Shock, Thermal and Vibration and much more management needs, KOLT’s power supplies are ready for your next project.
| Family | Input Voltage | Power | Output Voltage | Dimensions | Lead Time | Datasheet |
| KMPS15-AC1UNV-P1K6-DC28-EN | 1PH 90-265 VRMS | 1.6 kW | 28 VDC | 19”/2 form factor, 1U height | Sampling in 12 weeks* |  |
| KMPS11-AC1UNV-P3K3-DC28-EN | 1PH 90-265 VRMS | 3.3 kW | 28 VDC | 19”/2 form factor, 2U height | Sampling in 12 weeks* | |
| KMPS13-AC1UNV-P3K3-DC28-EN | 1PH 90-265 VRMS | 3.3 kW | 28 VDC | 19”/2 form factor, 2U height | Sampling in 12 weeks* | |

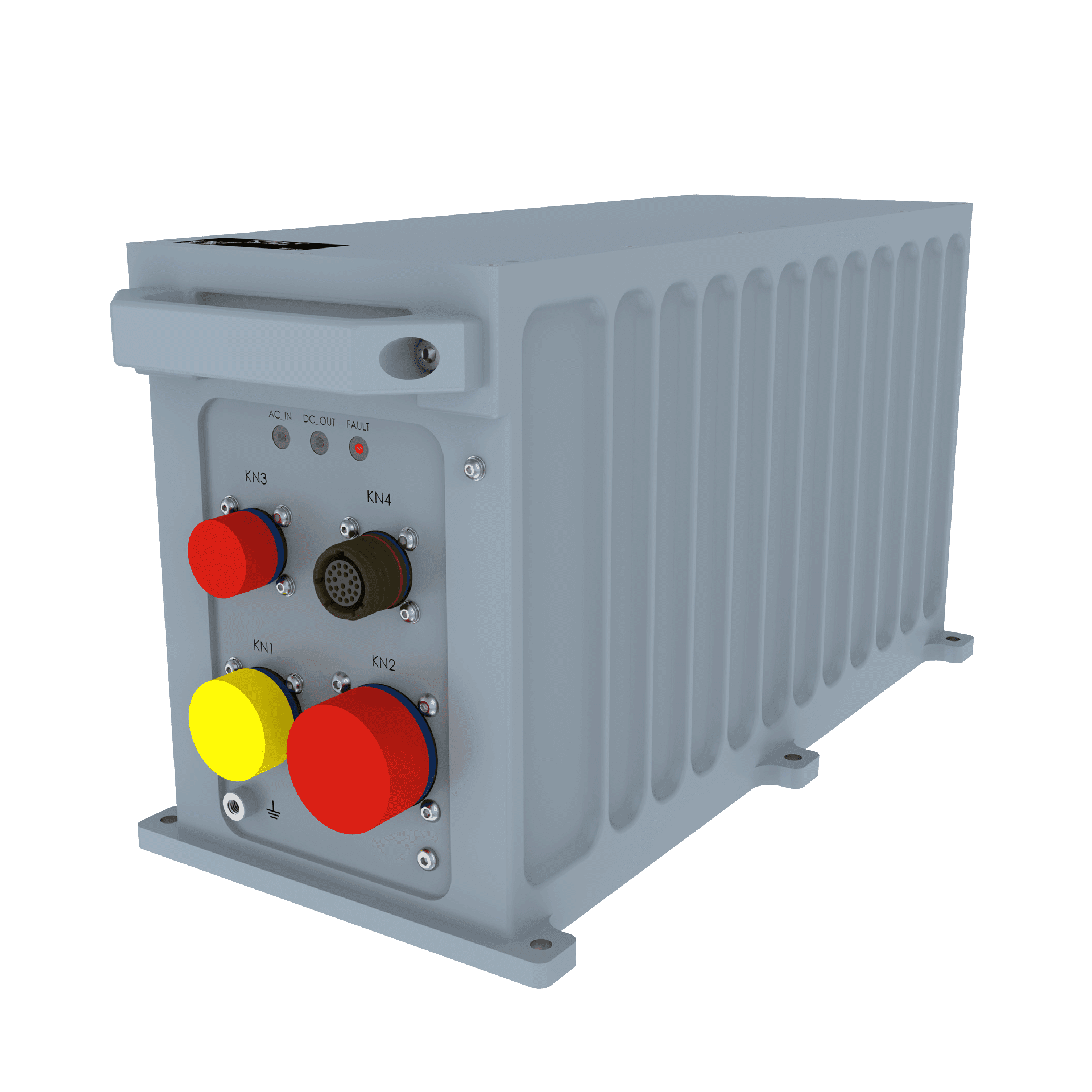

| KMPS01-AC3D115-P2K-DC28M-EN | 3PH 3W 115 VLL_RMS | 2 kW | 28 VDC | 357 x 203 x 138 mm | Sampling in 12 weeks* | |
| KMPS15-AC3D440-P1K6-DC28-EN | 3PH 3W 440 VLL_RMS | 1.6 kW | 28 VDC | 19”/2 form factor, 1U height | Sampling in 12 weeks* | |
| KMPS08-AC3D440-P3K-DC270-EN | 3PH 3W 440 VLL_RMS | 3 kW | 270 VDC | 19” form factor, 2U height | Sampling in 12 weeks* | |
| KMPS11-AC3D440-P3K3-DC28-EN | 3PH 3W 440 VLL_RMS | 3.3 kW | 28 VDC | 19”/2 form factor, 2U height | Sampling in 12 weeks* | |
| KMPS13-AC3D440-P3K3-DC28-EN | 3PH 3W 440 VLL_RMS | 3.3 kW | 28 VDC | 19”/2 form factor, 2U height | Sampling in 12 weeks* | |
| KMPS03-AC3D440-P7K5-DC22M-EN | 3PH 3W 440 VLL_RMS | 7.5 kW | 22 VDC | 404 x 391 x 170 mm | Sampling in 12 weeks* | |
| KMPS20-AC3UNV-P9K-DC28-EN | 3PH 90-265 VRMS | 9 kW | 28 VDC | 19” form factor, 2U height | In Development | |
| KMPS20-AC3D440-P9K-DC28-EN | 3PH 3W 440 VLL_RMS | 9 kW | 28 VDC | 19” form factor, 2U height | In Development |
*For more accurate lead times, please contact us.
KMPS15-AC1UNV-P1K6-DC28-EN
Features
- Single Phase Universal AC input
- Built-in Active PFC Function
- Up to 1600 W Output Power
- 92% Efficiency at Full Load
- Multiple Units in a Redundant or Parallel System
- Two Units can be Mounted in 1U Height 19″ Rack
- Forced Air Cooled
KMPS13-AC1UNV-P3K3-DC28-EN
1Features
- Single Phase Universal AC input
- Built-in Active PFC Function
- Up to 3300 W Output Power
- 91% Efficiency at Full Load
- Multiple Units in a Redundant or Parallel System
- Two Units can be Mounted in 2U Height 19″ Rack
- Forced Air Cooled
- Lightning Protection
KMPS11-AC3D440-P3K3-DC28-EN
Features
- True 3-Phase Universal AC input
- Built-in Active PFC Function
- Up to 3300 W Output Power
- 90.8% Efficiency at Full Load
- Multiple Units in a Redundant or Parallel System
- Two Units can be Mounted in 2U Height 19″ Rack
- Forced Air Cooled
