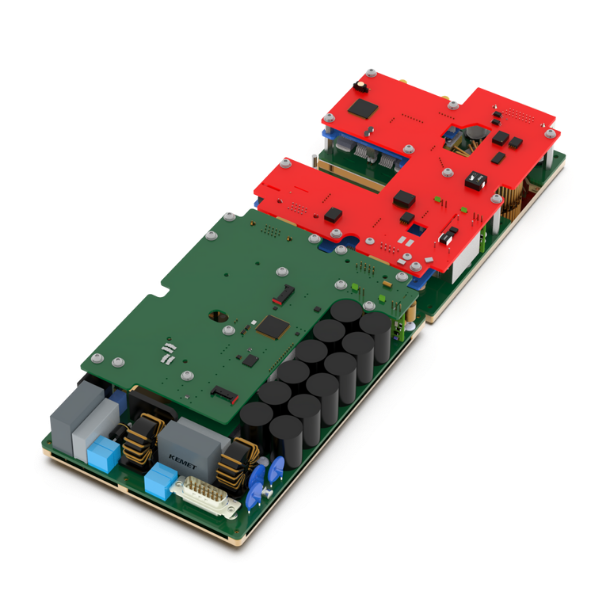

KOLT AC-DC Power Factor Correction and Isolated DC-DC Converter Modules are designed to be used in tandem. Combinations of these modules ensures variety of factory adjustable power supplies and battery chargers.
KOLT’s Power Modules are engineered to perform reliably under extreme environmental conditions. It comes with advanced protection features against external faults and disturbances, meeting major military standards.
| Family | Input Voltage | Power | Output Voltage | Package | Datasheet |
| KEU-PF822-001 | 1PH 90-265 VRMS | 3.3 kW | 380 VDC | Custom Module |  |
| KEU-PF593-001 | 3PH 3W 440 VLL_RMS | 3.3 kW | 380 VDC | Custom Module | |
| KEU-PM719-002 | 250-425 VDC | 3.3 kW | 28 VDC | Custom Module | Contact Us for Current Data |
| KEU-PM195-001 | 310-425 VDC | 3.3 kW | 270 VDC | Custom Module | Contact Us for Current Data |
| Family | Input Voltage | Power | Output Voltage | Package |
| KEU-PF822-001 | 1PH 90-265 VRMS | 3.3 kW | 380 VDC | Custom Module |
| KEU-PF593-001 | 3PH 3W 440 VLL_RMS | 3.3 kW | 380 VDC | Custom Module |
| KEU-PM719-002 | 250-425 VDC | 3.3 kW | 28 VDC | Custom Module |
| KEU-PM195-001 | 310-425 VDC | 3.3 kW | 270 VDC | Custom Module |

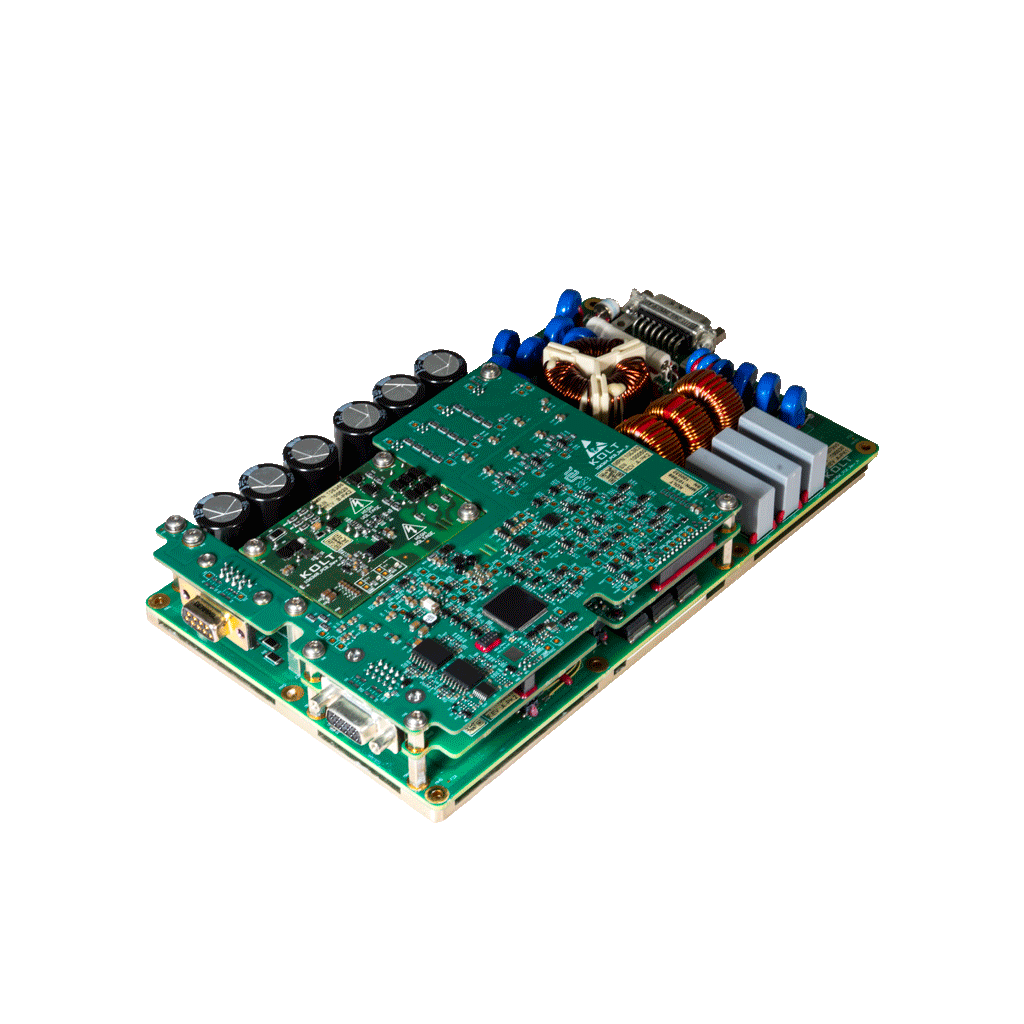

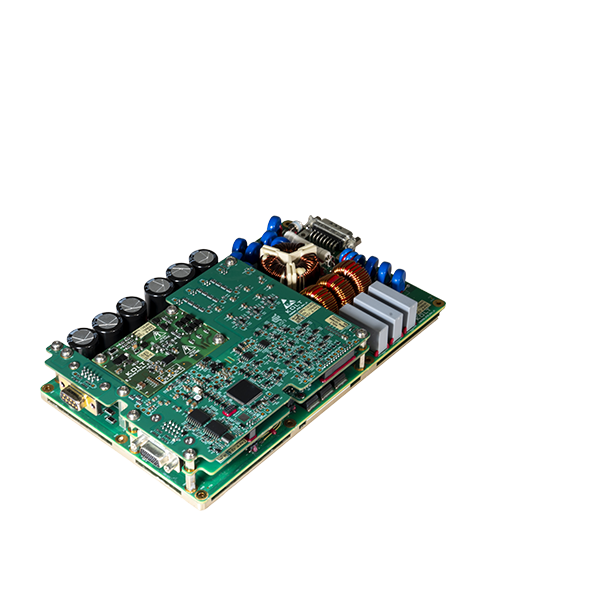

KEU-PF593-001
Features
- True 3-Phase Power Factor Correction Module
- Less Than 5% THD of AC Input Current
- Internal Input EMI Filter
- Up To 3420 W Output Power
- Baseplate Cooled

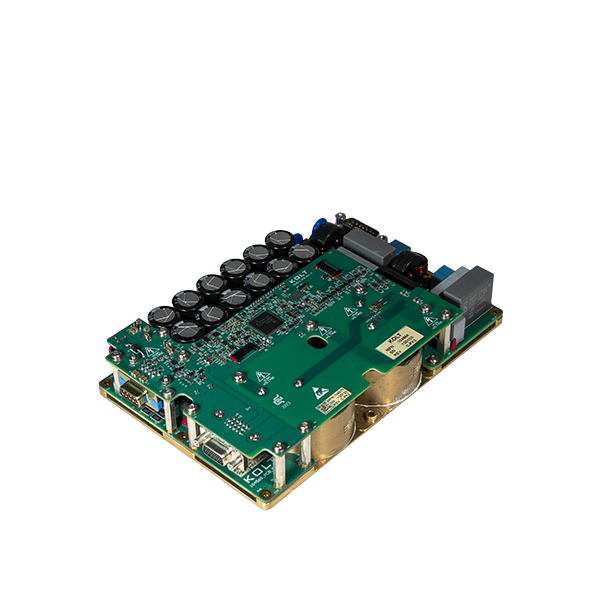

KEU-PF822-001
Features
- Single-Phase Power Factor Correction Module
- Less Than 10% THD of AC Input Current
- Internal Input EMI Filter
- Up To 3420 W Output Power
- Baseplate Cooled

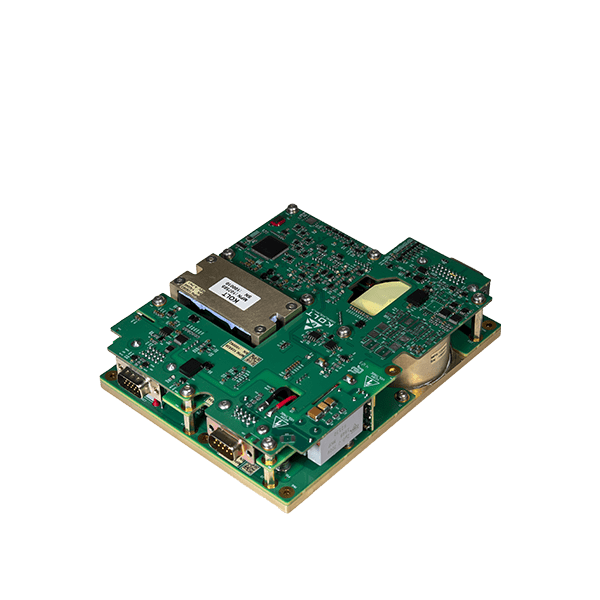

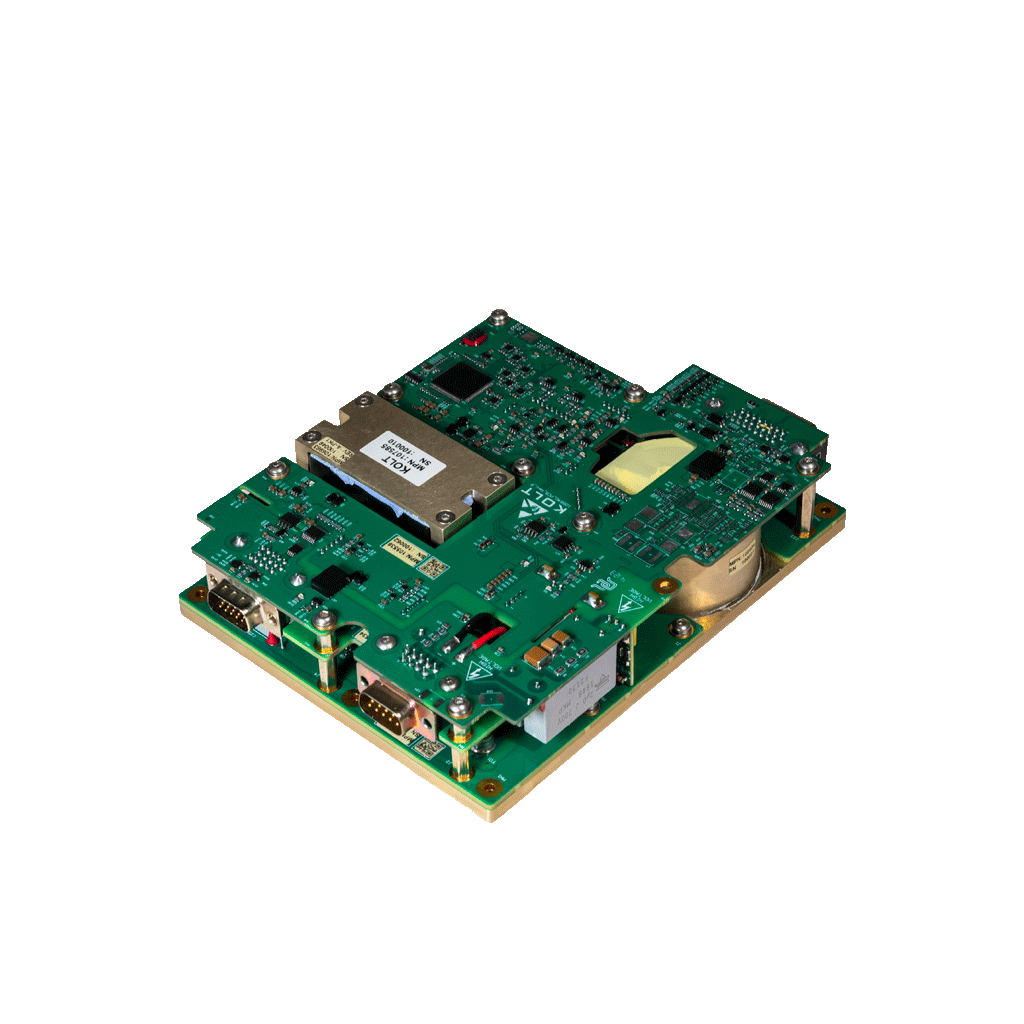

KEU-PM719-002
Features
- Isolated DC/DC Converter Module
- Programmable Output Voltage and Current
- Droop Current Sharing & Internal ORing Diode
- Up to 3300 W Output Power
- Baseplate Cooled
