DC/DC Power Supplies
DC/DC Power Supplies
Since day one KOLT has been a pioneer for highly efficient and reliable military power supplies. Designing and manufacturing exceptional power supplies for air, land and naval platforms over the years established well-deserved expertise which we feel proud of.
Compliant with military standards, KOLT’s field-proven power supplies being used every day in most demanding environments on our planet. Set to perfect EMI, Shock, Thermal and Vibration and much more management needs, KOLT’s power supplies are ready for your next project.
| Family | Input Voltage | Power | Output Voltage | Dimensions | Datasheet |
| KMPS16‐DC28‐P4K8‐DC28M‐EN | 20-33 VDC | 4.8 kW | 28 VDC | 390 x 390 x 237 mm |  |
| KMPS09-DC270-P5K-DC28-EN | 250-425 VDC | 5 kW | 28 VDC | 340 x 370 x 87.75 mm | |
Contact KOLT for current product specific long form data / additional qualification data and lead times
Other options available on request
KMPS16-DC28-P4K8-DC28M-EN_Datasheet
Features
- Isolated DC-DC Power Supply
- MIL-STD-1275E Compliant
- EMI Filter Included
- 16 Channels with Isolated 28V Outputs
- Up to 300 W on Each Channel
- Up to 4800 W Total Output Power
- Forced Air Cooled

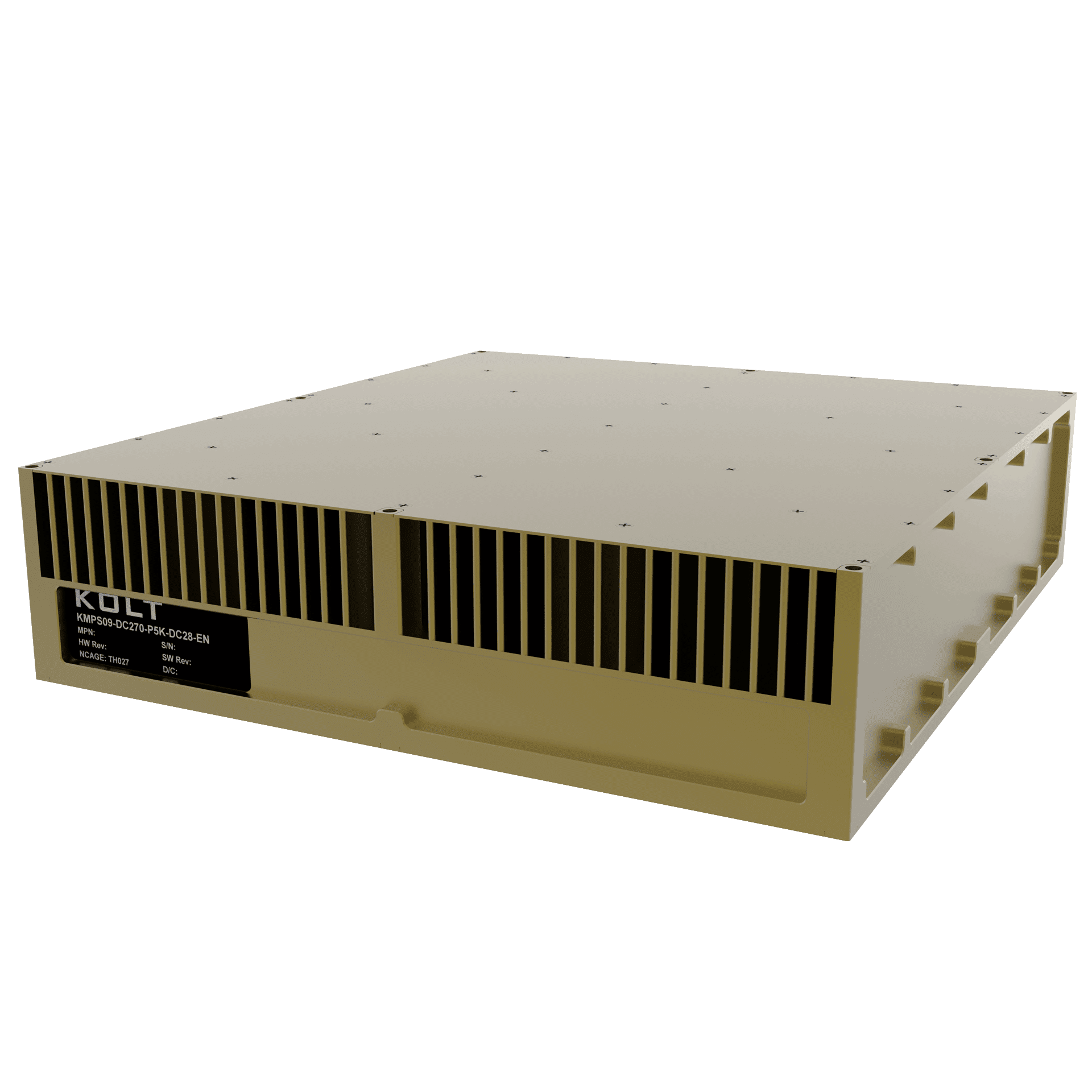

KMPS09-DC270-P5K-DC28-EN
Features
- Rugged Module for Military Applications
- MIL-STD-704F Compliant
- Fully Isolated and Redundant Dual Output
- Up to 2500 W Output Power on Each Channel
- Up to 5000 W Total Output Power
- Droop Current Sharing & Internal ORing Diode
- Forced Air Cooled
