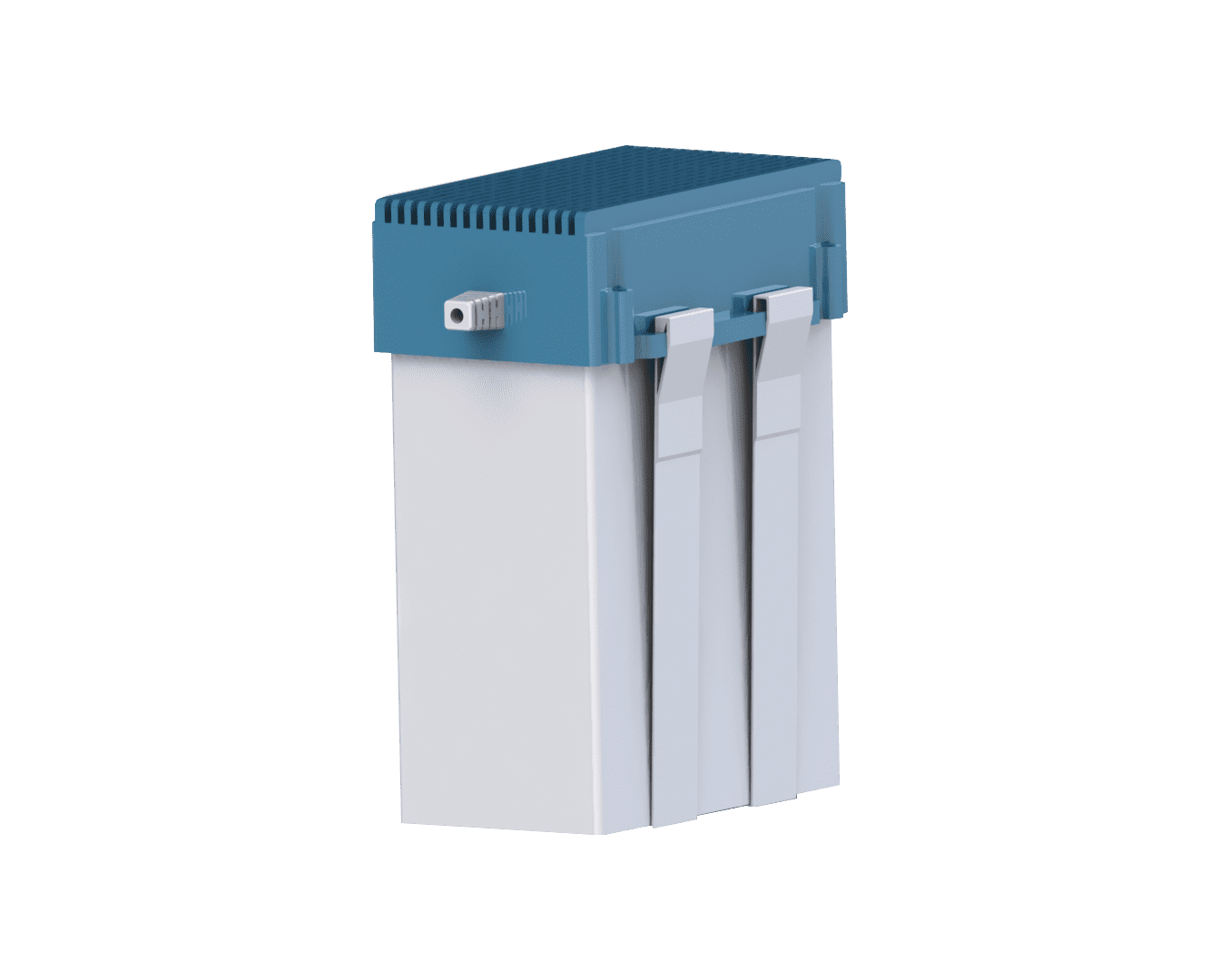

GDK2002 Non-Isolated Bidirectional Pass-Thru & Battery Backup
GDK2002 Non-Isolated Bidirectional Pass-Thru & Battery Backup
Product Description
GDK2002 Non-Isolated Bidirectional Pass-Thru & Battery Backup is an uninterruptible power unit designed for BB2590 batteries. When the input voltage is applied, it transmits the input voltage to the output line.
At the same time, it charges the battery by taking advantage of the energy at the input. When there is no input voltage, it supplies the output voltage from the battery without interrupting the output voltage. In case of feeding from the battery, the output voltage is given as regulated 28 Vdc.
Product Properties
| Input Voltage | 20-34 Vdc Input |
|---|---|
| Output Voltage | 28 – 32 V | 48 VFAN Output |
| Operating Temperature | -30°C to +50°C |
| Storage Temperature | -40°C to +65°C |
| Humidity/Vibration | MIL-STD-810G |
| Low Pressure | MIL-STD-810F |
| Shock/Sand and Dust/Corrosion | MIL-STD-810G |
| Dimensions | 117 x 64 x 39 mm |
