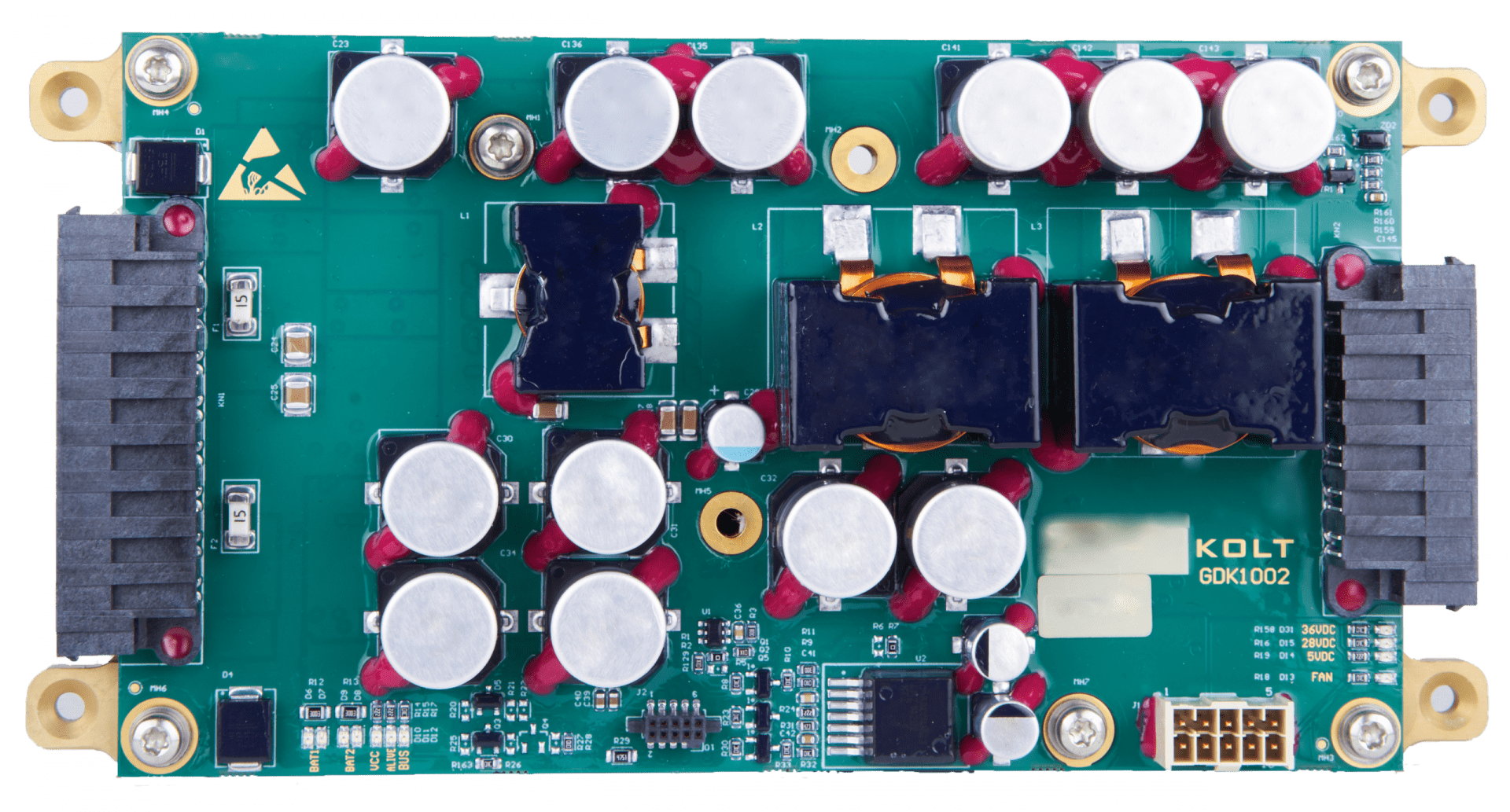

GDK1002 500W DC/DC PoL Converter
GDK1002 500W DC/DC PoL Converter
Product Description
GDK1002 500W DC/DC PoL Converter, feeds two independent batteries and produces different output voltages. The cooling plate is mounted with a thermal pad. Some output voltages can be switched off or fan level can be changed via software.
[std alias=”gdk1002″]
Product Properties
| Power | 500W |
|---|---|
| Input Voltage | 20-34 Vdc Input |
| Output Voltage | 36 Vdc Output, 28 Vdc Output, 5,4 Vdc Output |
| Operating Temperature | -30°C to +50°C |
| Storage Temperature | -40°C to +65°C |
| Humidity/Vibration | MIL-STD-810D |
| Low Pressure | MIL-STD-810F |
| Shock/Sand and Dust/Corrosion | MIL-STD-461G |
| Dimensions | 163 x 82 x 24.9 mm |
| Weight | 360 gr |
