DC/DC Power Supplies
DC/DC Power Supplies
Since day one KOLT Engineering has been a pioneer for highly efficient and reliable military power supplies. Designing and manufacturing exceptional power supplies for air, land, and naval platforms over the years established well-deserved expertise that we feel proud of.
Compliant with military standards, KOLT’s field-proven power supplies are being used every day in the most demanding environments on our planet. Set to perfect EMI, Shock, Thermal, and Vibration and many more management needs, its power supplies are ready for your next project.
| Family | Input Voltage | Power | Output Voltage | Dimensions |
| KEU-PS456-001 | 20-33 VDC | 4.8 kW | 28 VDC | 390 x 390 x 237 mm |
| KEU-PS560-001 | 250-425 VDC | 5 kW | 28 VDC | 340 x 370 x 87.75 mm |
Contact KOLT for current product specific long form data / additional qualification data and lead times.
Other options available on request.
| Family | Input Voltage | Power | Output Voltage | Dimensions | Datasheet |
| KEU-PS456-001 | 20-33 VDC | 4.8 kW | 28 VDC | 390 x 390 x 237 mm | Contact Us for Current Data |
| KEU-PS560-001 | 250-425 VDC | 5 kW | 28 VDC | 340 x 370 x 87.75 mm | Contact Us for Current Data |
Contact KOLT for current product specific long form data / additional qualification data and lead times.
Other options available on request.

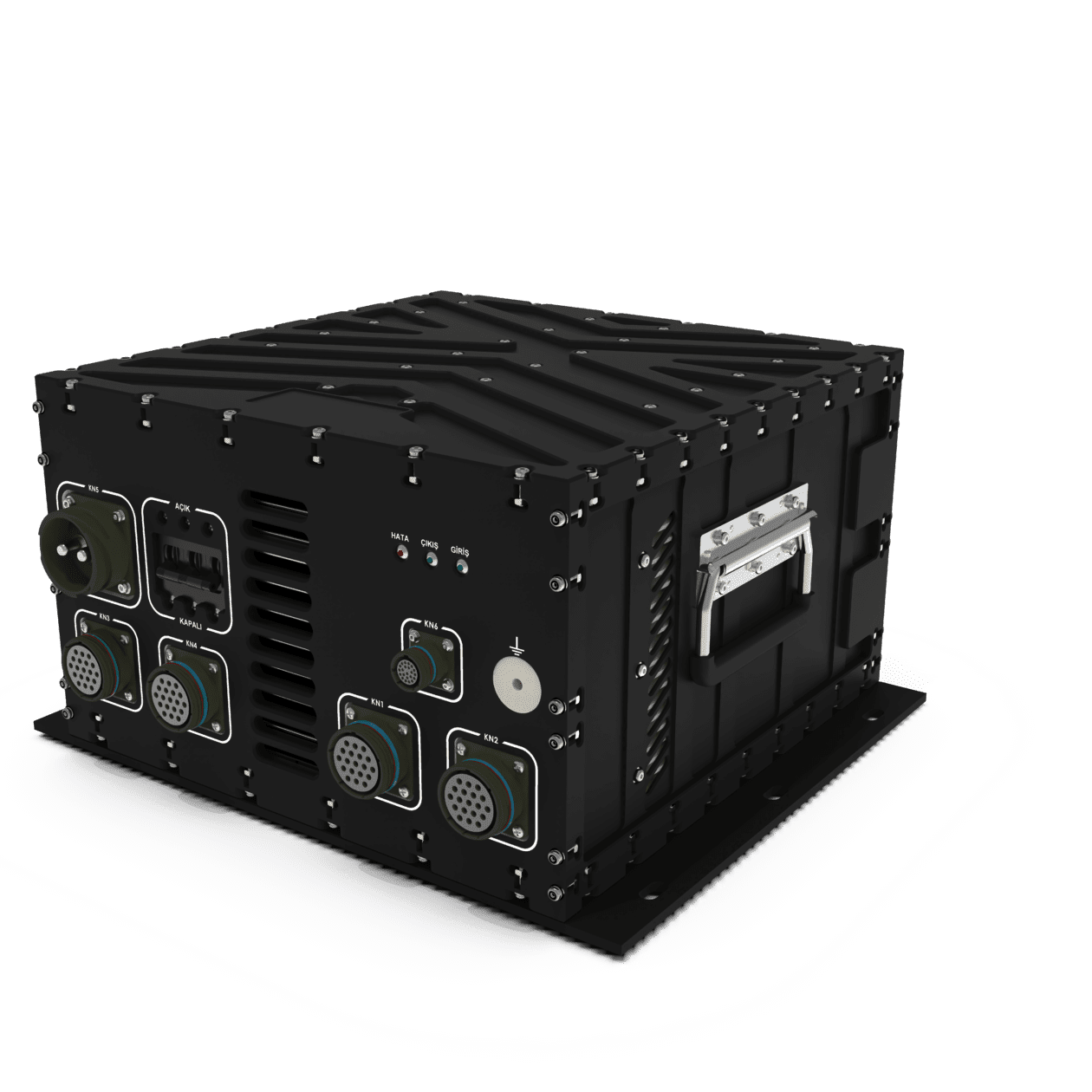

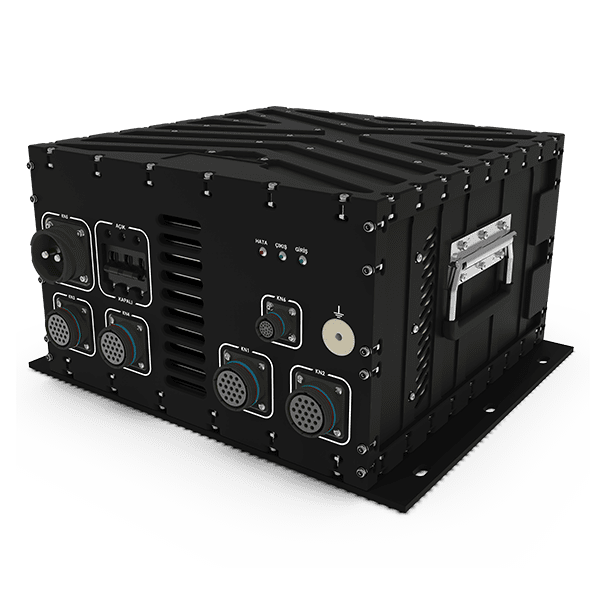

KEU-PS456-001
Features
- Isolated DC-DC Power Supply
- MIL-STD-1275E Compliant
- EMI Filter Included
- 16 Channels with Isolated 28V Outputs
- Up to 300 W on Each Channel
- Up to 4800 W Total Output Power
- Forced Air Cooled

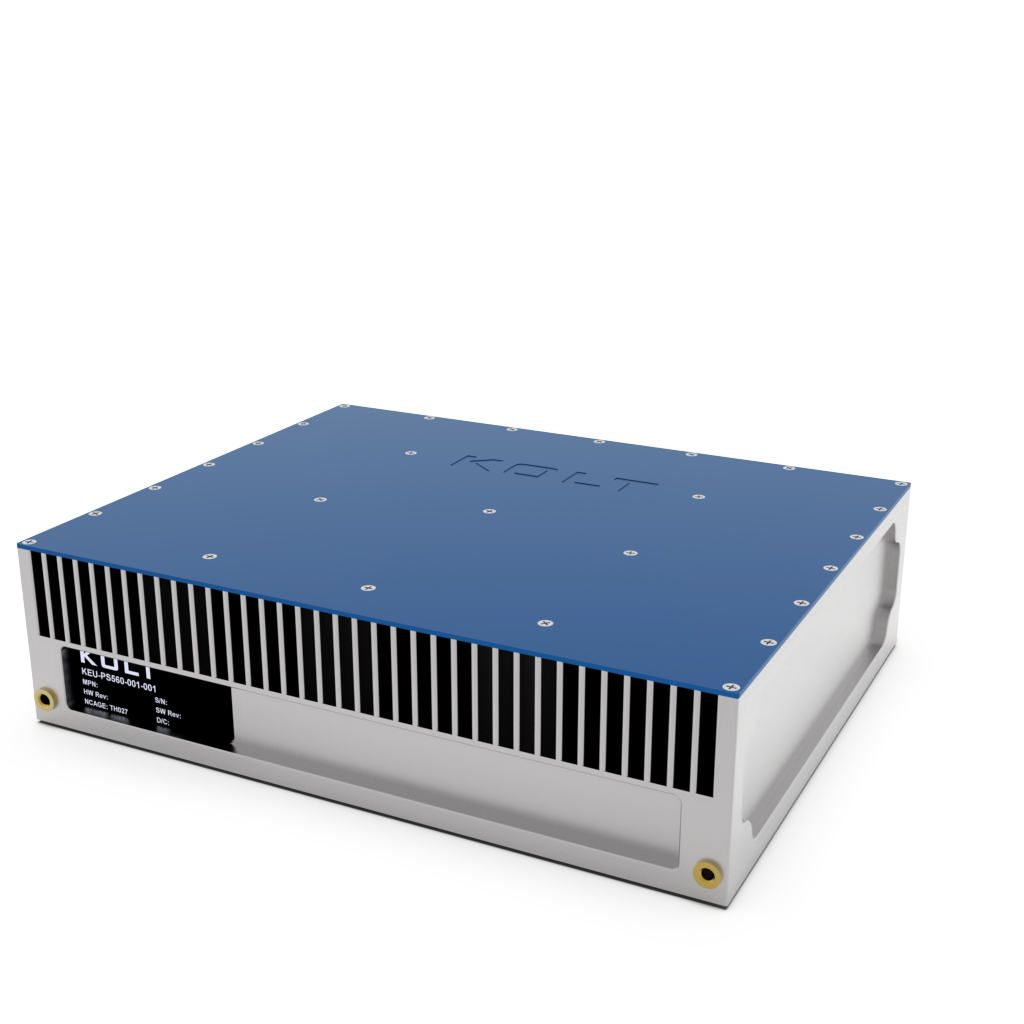

KEU-PS560-001
Features
- Rugged Module for Military Applications
- MIL-STD-704F Compliant
- Fully Isolated and Redundant Dual Output
- Up to 2500 W Output Power on Each Channel
- Up to 5000 W Total Output Power
- Droop Current Sharing & Internal ORing Diode
- Forced Air Cooled
